文章介绍：VyOS 配置 OpenVPN 服务端模式，iKuai 软路由 OpenVPN 客户端拨号连接，实现简单组网，采用账号密码加证书认证方式实现。
一、VyOS
1.1、VyOS镜像
1.2、VyOS安装
1.3、VyOS基础
二、VyOS配置OpenVPN
2.1、生成ca证书
run generate pki ca install ca
2.2、生成服务端证书和密钥
run generate pki certificate sign ca install server-cert-key
2.3、生成客户端证书和密钥
run generate pki certificate sign ca install client-cert-key
2.4、创建checkpsw.sh
sudo nano /config/auth/checkpsw.sh
#!/bin/sh
###########################################################
# checkpsw.sh (C) 2004 Mathias Sundman <[email protected]>
#
# This script will authenticate OpenVPN users against
# a plain text file. The passfile should simply contain
# one row per user with the username first followed by
# one or more space(s) or tab(s) and then the password.
###########################################################
PASSFILE="/config/auth/openvpn_user_passwd.txt"
LOG_FILE="/config/auth/openvpn.log"
TIME_STAMP=`date "+%Y-%m-%d %T"`
if [ ! -r "${PASSFILE}" ]; then
echo "${TIME_STAMP}: Could not open password file \"${PASSFILE}\" for reading." >> ${LOG_FILE}
exit 1
fi
CORRECT_PASSWORD=`awk '!/^;/&&!/^#/&&$1=="'${username}'"{print $2;exit}' ${PASSFILE}`
if [ "${CORRECT_PASSWORD}" = "" ]; then
echo "${TIME_STAMP}: User does not exist: username=\"${username}\", password=\"${password}\"." >> ${LOG_FILE}
exit 1
fi
if [ "${password}" = "${CORRECT_PASSWORD}" ]; then
echo "${TIME_STAMP}: Successful authentication: username=\"${username}\"." >> ${LOG_FILE}
exit 0
fi
echo "${TIME_STAMP}: Incorrect password: username=\"${username}\", password=\"${password}\"." >> ${LOG_FILE}
exit 1
2.5、赋权checkpsw.sh
sudo chmod +x /config/auth/checkpsw.sh
2.6、创建密码本
sudo nano /config/auth/openvpn_user_passwd.txt
2.7、赋权密码本
sudo chmod 664 /config/auth/openvpn_user_passwd.txt
2.8、创建拨号日志文件
sudo touch /config/auth/openvpn.log
2.9、OpenVPN接口
set interfaces openvpn vtun11996 description 'OpenVPN-Server'
set interfaces openvpn vtun11996 local-host '123.123.123.123'
set interfaces openvpn vtun11996 local-port '11996'
set interfaces openvpn vtun11996 mode 'server'
set interfaces openvpn vtun11996 openvpn-option '--script-security 3'
set interfaces openvpn vtun11996 openvpn-option '--persist-key'
set interfaces openvpn vtun11996 openvpn-option '--duplicate-cn'
set interfaces openvpn vtun11996 openvpn-option '--auth-user-pass-verify /config/auth/checkpsw.sh via-env'
set interfaces openvpn vtun11996 openvpn-option '--username-as-common-name'
set interfaces openvpn vtun11996 openvpn-option '--cipher AES-256-GCM'
set interfaces openvpn vtun11996 openvpn-option '--tun-mtu 1500'
set interfaces openvpn vtun11996 openvpn-option '--mssfix 1300'
set interfaces openvpn vtun11996 persistent-tunnel
set interfaces openvpn vtun11996 protocol 'udp'
set interfaces openvpn vtun11996 server client ikuai ip '100.64.168.2'
set interfaces openvpn vtun11996 server client ikuai push-route '192.168.65.0/24'
set interfaces openvpn vtun11996 server client-ip-pool start '100.64.168.2'
set interfaces openvpn vtun11996 server client-ip-pool stop '100.64.168.254'
set interfaces openvpn vtun11996 server client-ip-pool subnet-mask '255.255.255.0'
set interfaces openvpn vtun11996 server max-connections '250'
set interfaces openvpn vtun11996 server subnet '100.64.168.0/24'
set interfaces openvpn vtun11996 server topology 'subnet'
set interfaces openvpn vtun11996 tls ca-certificate 'ca'
set interfaces openvpn vtun11996 tls certificate 'server-cert-key'
set interfaces openvpn vtun11996 use-lzo-compression
set interfaces openvpn vtun11996 description 'OpenVPN-Server'：为接口添加描述，标识其为OpenVPN服务端set interfaces openvpn vtun11996 local-host '123.123.123.123'：绑定服务端监听的本地IP地址set interfaces openvpn vtun11996 local-port '11996'：设置服务端监听的UDP端口set interfaces openvpn vtun11996 mode 'server'：定义接口工作模式为服务端set interfaces openvpn vtun11996 openvpn-option '--script-security 3'：设置脚本安全级别为3，允许执行带外部调用的脚本set interfaces openvpn vtun11996 openvpn-option '--persist-key'：启用密钥持久化，重连时无需重新读取私钥set interfaces openvpn vtun11996 openvpn-option '--duplicate-cn'：允许相同通用名称的客户端同时连接set interfaces openvpn vtun11996 openvpn-option '--auth-user-pass-verify /config/auth/checkpsw.sh via-env'：通过指定脚本验证客户端账号密码，信息通过环境变量传递set interfaces openvpn vtun11996 openvpn-option '--username-as-common-name'：将客户端用户名作为TLS认证的通用名称set interfaces openvpn vtun11996 openvpn-option '--cipher AES-256-GCM'：指定数据通道加密算法为AES-256-GCMset interfaces openvpn vtun11996 openvpn-option '--tun-mtu 1500'：设置TUN设备的MTU为1500字节set interfaces openvpn vtun11996 openvpn-option '--mssfix 1300'：限制TCP最大分段大小为1300字节，避免分片set interfaces openvpn vtun11996 persistent-tunnel：启用隧道持久化，空闲时不主动断开连接set interfaces openvpn vtun11996 protocol 'udp'：使用UDP协议传输VPN数据set interfaces openvpn vtun11996 server client ikuai ip '100.64.168.2'：为标识为ikuai的客户端分配固定IPset interfaces openvpn vtun11996 server client ikuai push-route '192.168.65.0/24'：向ikuai客户端推送192.168.65.0/24网段的路由set interfaces openvpn vtun11996 server client-ip-pool start '100.64.168.2'：定义客户端动态IP池的起始地址set interfaces openvpn vtun11996 server client-ip-pool stop '100.64.168.254'：定义客户端动态IP池的结束地址set interfaces openvpn vtun11996 server client-ip-pool subnet-mask '255.255.255.0'：指定IP池的子网掩码set interfaces openvpn vtun11996 server max-connections '250'：限制最大并发客户端连接数为250set interfaces openvpn vtun11996 server subnet '100.64.168.0/24'：定义VPN客户端所属的统一子网set interfaces openvpn vtun11996 server topology 'subnet'：配置VPN网络拓扑为子网模式，客户端共处同一子网set interfaces openvpn vtun11996 tls ca-certificate 'ca'：指定用于TLS认证的根证书set interfaces openvpn vtun11996 tls certificate 'server-cert-key'：指定服务端的TLS证书和私钥set interfaces openvpn vtun11996 use-lzo-compression：启用LZO数据压缩，优化传输效率
三、iKuai配置OpenVPN

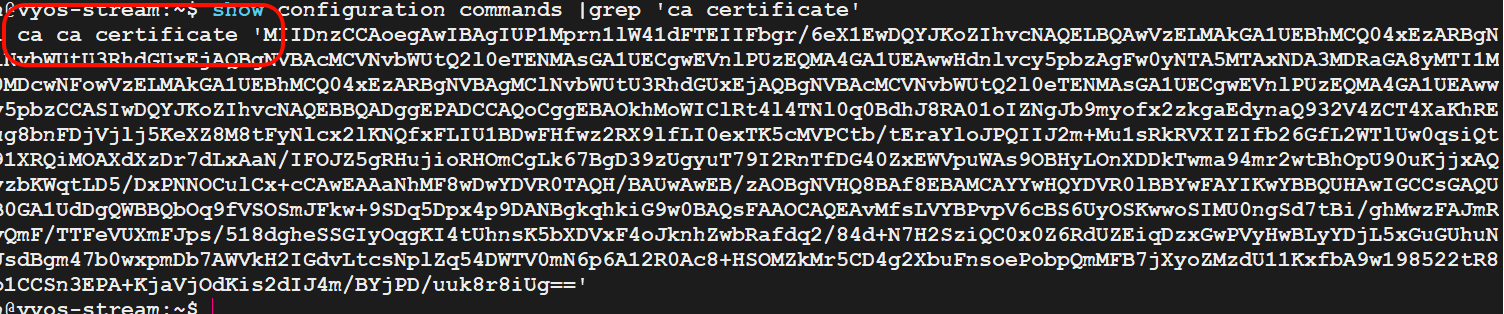

3.1、CA证书获取
show configuration commands |grep 'ca certificate'

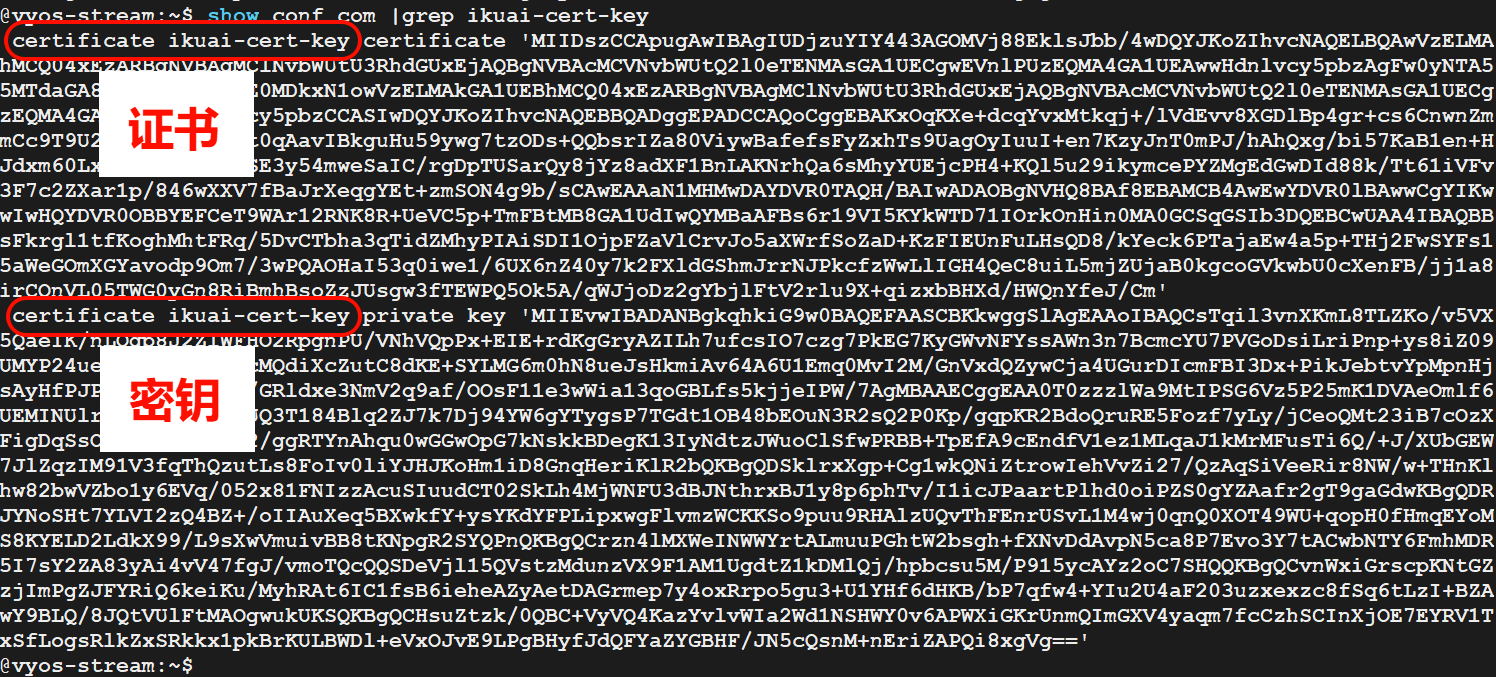

3.2、客户端证书获取
show conf com |grep client-cert-key
3.3、iKuai填写CA证书模板
-----BEGIN CERTIFICATE-----
这里填刚刚从vyos里面show出来的内容，只需要单引号里面的内容。
-----END CERTIFICATE-----
3.4、iKuai填写客户端证书模板
-----BEGIN CERTIFICATE-----
这里填刚刚从vyos里面show出来的内容，只需要单引号里面的内容。
-----END CERTIFICATE-----
3.5、iKuai填写客户端私钥模板
-----BEGIN RSA PRIVATE KEY-----
这里填刚刚从vyos里面show出来的内容，只需要单引号里面的内容。
-----END RSA PRIVATE KEY-----

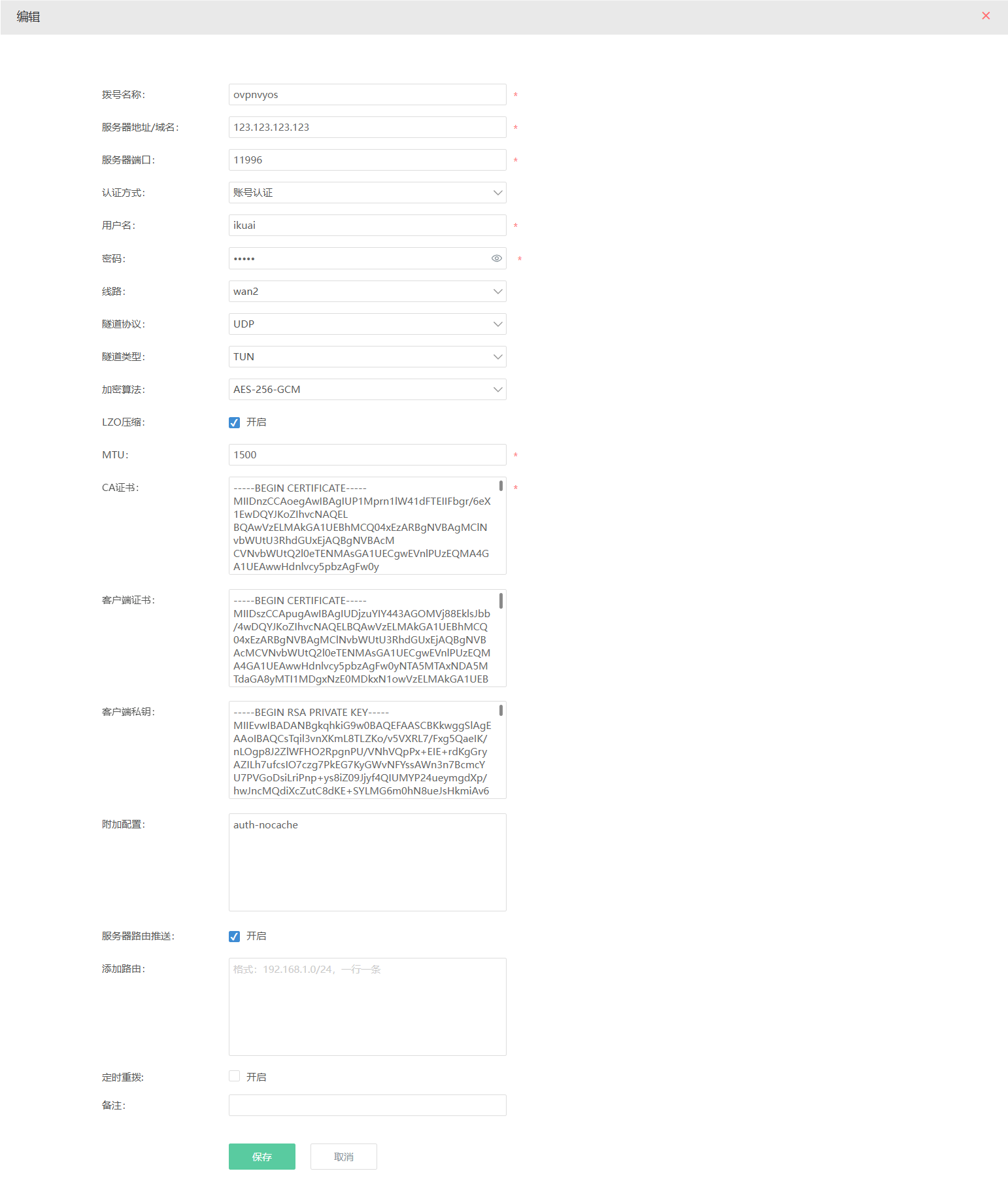

3.6、iKuai完整配置
四、连接状态查询

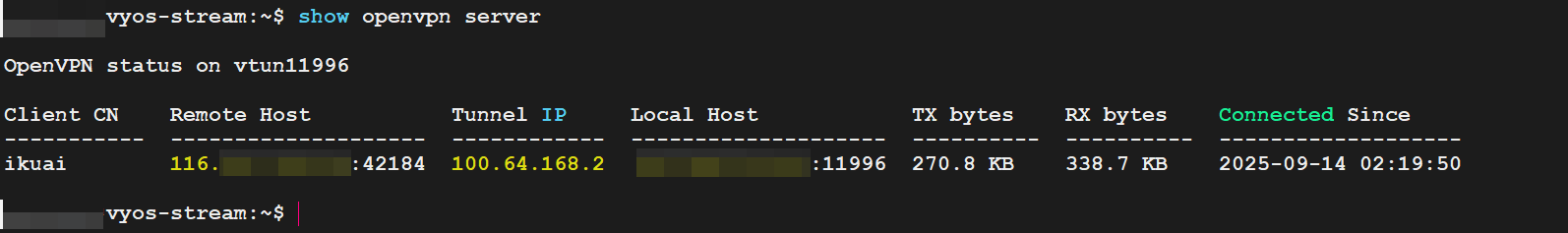

4.1、VyOS查看
show openvpn server
4.2、iKuai查看

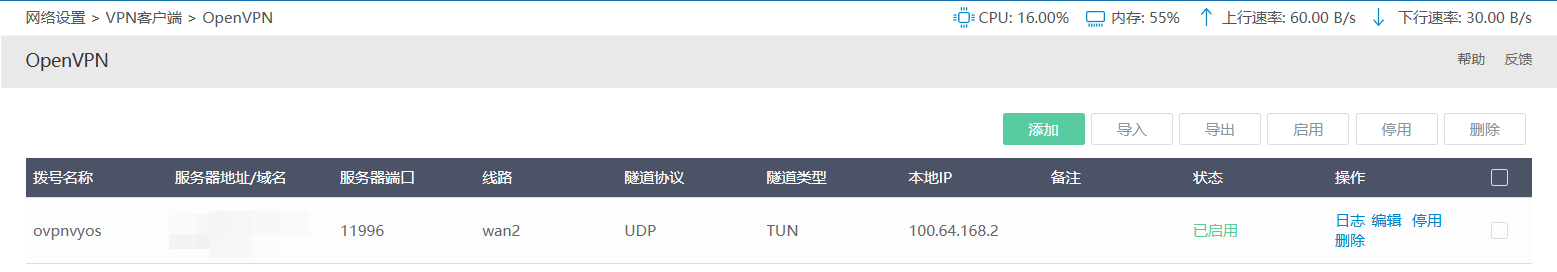

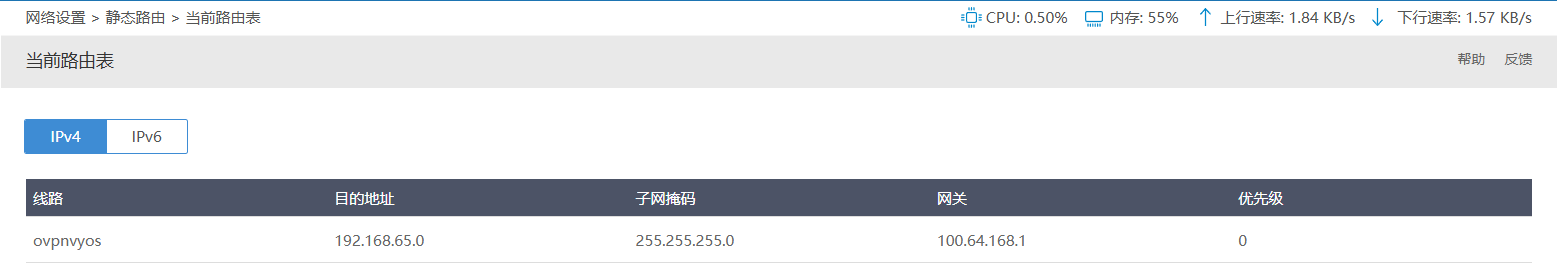

4.3、iKuai路由表查看

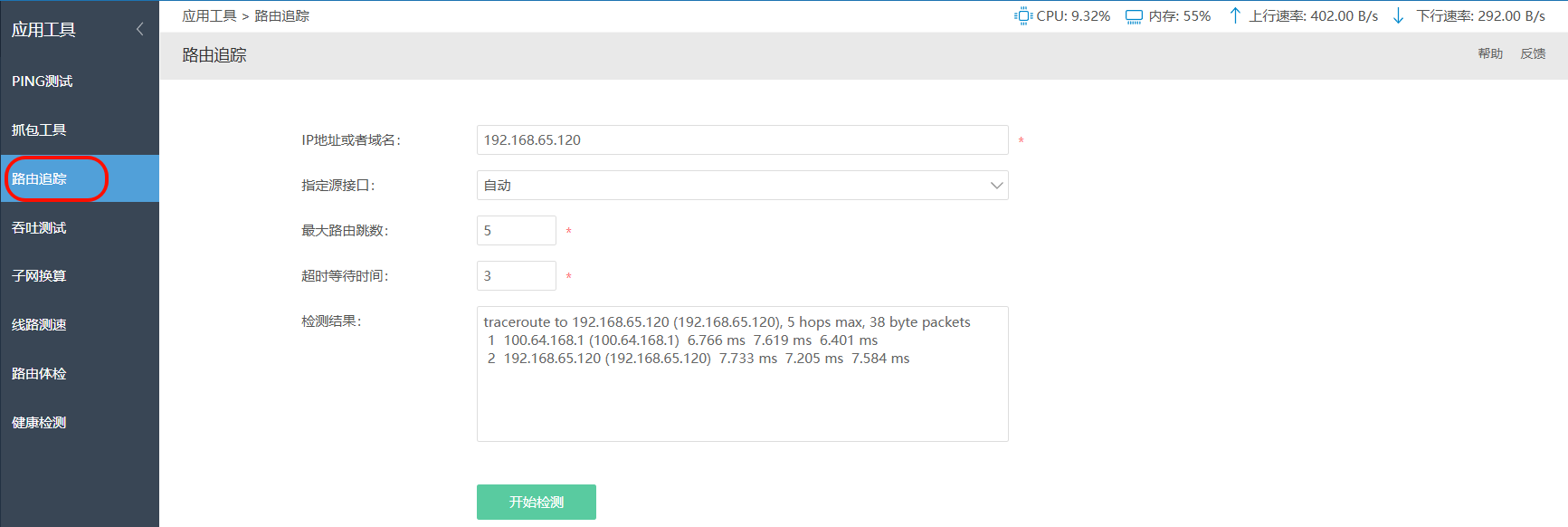

4.4、爱快traceroute测试
